Traffic Control Plan Template Ontario – OTM Book 7 & OHSA Guide for Contractors

In construction and utility work on public roads, the safety of drivers, pedestrians and the crew depends on how traffic is managed. A traffic control plan template is a pre‑designed layout showing where to place signs, cones, barriers and traffic control persons so that traffic can safely navigate around a work zone. For contractors and project managers in Ontario, using a traffic control plan template Ontario can shorten the permit process and provide a clear starting point for your own site‑specific plan.

Ontario doesn’t treat work‑zone traffic control lightly. The province’s Ministry of Transportation publishes the Ontario Traffic Manual (OTM) Book 7 – Temporary Conditions, and the Occupational Health and Safety Act (OHSA) and related construction regulations impose legal duties on employers. The OTM explains that the field edition is a field reference, but designers must use the office edition to create traffic control plans. It also stresses that safety of highway users and workers takes priority. Compliance with Book 7 and OHSA is mandatory, and failure to meet these requirements can lead to permit rejection, stop‑work orders and serious injury.

This guide explains what must be included in an Ontario‑compliant traffic control plan template, outlines common mistakes to avoid and shows when a simple template is sufficient and when a custom plan is required. We’ll also show how Plan My Traffic can turn a template into a permit‑ready, site‑specific drawing in 24 hours.

What Is a Traffic Control Plan Template in Ontario?

A traffic control plan (TCP) template is a simplified diagram that illustrates how traffic will be diverted around a work zone. It usually identifies the work area, lane closures, advance warning signs, tapers, traffic control persons (flaggers) or portable signals and the termination area. In Ontario, the OTM Book 7 provides guidance on typical layouts for different road types, durations and closure configurations. The manual states that the field edition is for implementation only, the office edition should be used to design traffic control plans because it contains all relevant details and the rationale for design choices.

Many contractors mistakenly use a generic template found online without adapting it to local conditions. This is risky because Book 7 is updated periodically (the current edition is April 2022) and the layouts are specific to the posted speed, number of lanes and work duration. Generic templates may also omit legal obligations under the OHSA and O.Reg 213/91. OTM Book 7 emphasises that workers who design traffic control plans must be competent and knowledgeable in Book 7 and the Regulations for Construction Projects. Site‑specific plans consider roadway geometry, traffic volumes, pedestrian and cyclist routes, transit stops, emergency access and staging sequences. A template is only a starting point , the design must be customised for each site and approved by the road authority.

Ontario Requirements That Every Traffic Control Plan Template Must Meet

Legal framework

Ontario’s legal framework for temporary traffic control comes from the OHSA and its Regulation for Construction Projects (O.Reg 213/91). OTM Book 7 explains that the Ministry of Labour, Training and Skills Development (MLTSD) has legal authority under the OHSA to regulate worker safety, while the Ministry of Transportation Ontario (MTO) and municipalities control traffic on highways. Only a road authority (municipal or provincial) may approve the installation of traffic control devices. The OTM also notes that Book 7 is a guideline, the OHSA and its regulations take precedence.

Regulations require that vehicular traffic which may be hazardous to workers on a public road must be controlled. Employers must ensure that the person directing traffic is a competent worker and does not perform other work while directing vehicles. Section 67(6) of O.Reg 213/91 similarly requires that workers who set up or remove temporary measures are competent, are not performing other duties and receive adequate instructions. Section 23 of O.Reg 145/00 restricts traffic control persons from directing more than one lane at a time and prohibits them from working where the speed limit exceeds 90 km/h.

The OTM identifies three types of users who need training: traffic control persons, workers who design traffic control plans and workers who set‑up, operate or remove traffic control measures. Training should provide experience in implementation, hazard awareness and the ability to install safe setups. Public safety is the first priority in every traffic control plan, and a traffic plan should not put workers or road users at risk.

A generic traffic control plan template won’t get approved in Ontario, get a site-specific TCP built to OTM Book 7 standards for compliance and first-time approval.

Get Your Ontario TCP in 24 Hours

Mandatory elements of a template

An Ontario TCP template is a schematic tool, but it must reflect the requirements of Book 7 and the OHSA. At minimum, your template should include:

• Site details – Identify the exact location (street name and limits), road classification (two‑lane, multi‑lane non‑freeway or freeway), posted speed and lane widths. Distinguish whether the work is in an urban area, on a rural highway or near a school or hospital. The OTM categorises typical layouts by roadway geometry and work duration.
• Work description and duration – Describe the nature of the work (e.g., pavement milling, utility repair, event setup) and classify its duration: mobile, intermittent, very short, short, long or multi‑phase. Different durations require different taper lengths and sign spacing.
• Advance warning signs and spacing – Show the sequence of signs (e.g., TC‑1, TC‑2, TC‑3, “Road Work Ahead”) and indicate the spacing between them. OTM Book 7 provides tables for sign placement at various speeds. Include portable variable message signs where appropriate.
• Tapers and channelizing devices – Draw the lane‑closure taper, buffer zone and work area using cones, drums or delineators. Indicate taper lengths based on posted speed and lane width. Identify crash attenuation devices or arrow boards when required.
• Control method – Specify whether traffic will be controlled using traffic control persons (flaggers), automated flagger assistance devices (AFADs), portable traffic signals, pilot vehicles or police. Note any restrictions (e.g., flaggers may only control one lane and cannot work where the speed limit exceeds 90 km/h).
• Pedestrian and cyclist accommodation – Provide safe, accessible detour routes for pedestrians and cyclists. Consider temporary crosswalks, ramps, fencing and signage. Highlight whether sidewalks are closed or open.
• PPE requirements – List the personal protective equipment required for workers, such as hi‑visibility Class 2 or Class 3 apparel, hard hats, safety footwear, gloves and hearing protection.
• Communication and contingency plan – Describe how the crew will communicate (radios, hand signals) and outline emergency procedures for accidents, weather events or unexpected road conditions. Include contact information for the road authority and emergency services.
• Permit and approval information – Note which municipal permits, police approvals or utility notifications are needed. Include references to the applicable OTM layout ID (e.g., TS‑11 for road painting) and provide a space for the road authority’s signature or stamp.

By incorporating these elements into your template, you demonstrate compliance with Book 7 and the OHSA. A template lacking any of these items risks being rejected and may expose your crew to legal liability.

Core Sections of an Ontario Traffic Control Plan Template

Templates are easier to fill out when they follow a logical structure. The following six sections mirror the component sequence described in Book 7 and help ensure nothing is overlooked.

1. Site Assessment
   A thorough site assessment sets the stage for a compliant plan. Visit the site early and document:
   • Road geometry (number of lanes, shoulders, curves and grades).
   • Posted speed and traffic volumes (including peak and off‑peak data).
   • Nearby land uses, schools, hospitals, intersections, transit stops and pedestrian crossings.
   • Existing signs, signals and pavement markings that will remain or need to be covered.
   • Environmental and weather considerations (rain, snow, visibility).

   This assessment will determine which Book 7 layout best fits the location and where modifications are needed. It also highlights hazards that could trigger delays or extra costs if ignored. Performing this step early mitigates surprises and reduces the risk of rejection.

2. Advance Warning Area
   The advance warning area prepares motorists, cyclists and pedestrians for upcoming changes. Your template should show:
   • The sequence of advance warning signs (e.g., “Road Work Ahead,” “Be Prepared to Stop” and speed reductions) and their spacing based on posted speed.
   • The location of portable variable message signs and warning beacons for high‑speed roads or night work.
   • Any temporary speed limit signs, rumble strips or rumble devices to alert drivers.
   • Information signs for cyclists and pedestrians, including detour maps or “Sidewalk Closed” notices.

   Proper advance warning reduces last‑minute braking and lane changes, keeping traffic flowing smoothly and safely.

3. Transition / Taper
   The transition area moves traffic out of its normal path into the designated lane or detour. In this section, detail:
   • The taper length (L) based on Book 7 guidelines for the posted speed and lane width.
   • The type and spacing of channelizing devices (cones, drums, tubular markers) that define the taper.
   • Placement of arrow boards or portable signals for multi‑lane or high‑speed closures.
   • Buffer zones separating the taper from the work area to provide recovery space.

   Incorrect taper length or device spacing is one of the most common causes of collisions in work zones. Following Book 7 tables helps avoid this mistake.

4. Work Area
   The work area is where construction or utility activities occur. Use your template to clearly show:
   • The limits of the work zone, equipment positions and storage areas for materials.
   • Barriers or positive protection (e.g., concrete barriers, crash attenuators) required on high‑speed roads.
   • Pedestrian pathways or temporary platforms around the work zone.
   • Space for construction vehicles to enter/exit without crossing active lanes unnecessarily.

   Precise delineation of the work area protects both the crew and the public and ensures inspectors understand how the site will operate.

5. Termination Area
   After the work zone, traffic must return smoothly to its normal path. The template should include:
   • The length of the termination taper and its channelizing devices.
   • “End Road Work” signs and removal of speed restrictions.
   • Restoration of lane markings or temporary pavement markings if the road surface has changed.

   Although often overlooked, a clear termination area prevents confusion and improves public perception of the project.

6. Communication & Emergency Procedures
   This section emphasises how the project team will communicate and handle unexpected events:
   • Radio channels or telephone numbers for the crew, subcontractors and traffic control persons.
   • Procedures for incident management, including collisions, medical emergencies, severe weather or traffic backups.
   • Contact information for the road authority, police, ambulance and utility companies.
   • Contingency measures such as detour routes and additional signage to implement if conditions change.

   Including an emergency plan signals to reviewers that you have considered “what‑if” scenarios and reduces the risk of rejection.

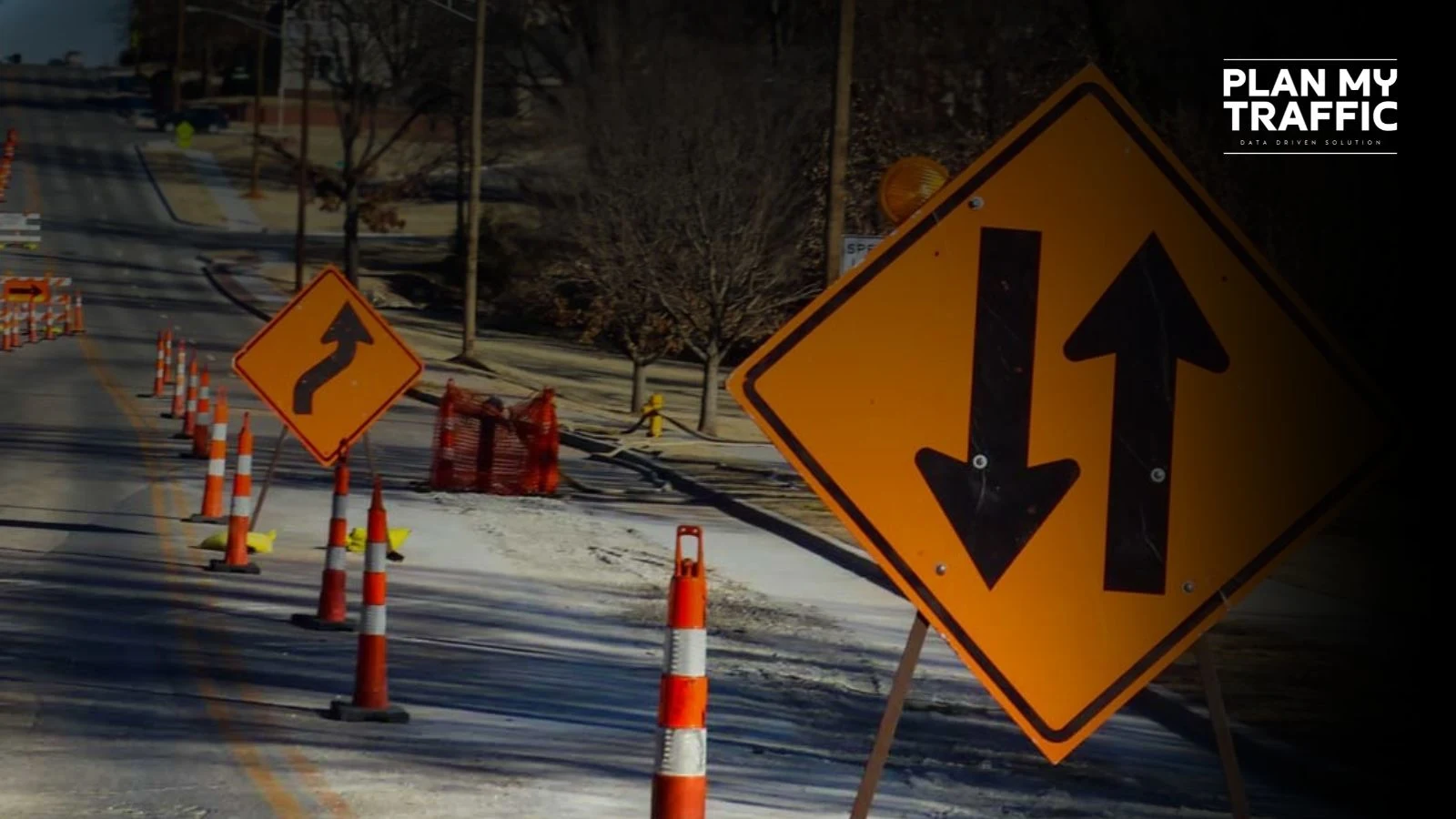

Single Lane and Lane Closure Templates in Ontario

Ontario projects commonly involve single‑lane alternating traffic (also called single‑lane alternating operation) on two‑lane roads, shoulder closures on freeways and full lane closures for bridge repairs or utility cuts. The OTM offers typical layouts for each scenario, categorised by roadway type, number of closed lanes and work duration. Your construction traffic control plan should reference the appropriate layout ID (e.g., TS‑18 for a lane closed yield to oncoming traffic) and modify it only as necessary to address site‑specific conditions. For example:

• Single‑lane alternating traffic (SLAT) – On low‑volume two‑lane roads, traffic control persons or portable signals alternate traffic in one open lane. The template must show flagger positions, stop‑here signs and communication methods, and must comply with O.Reg 145/00 by not controlling more than one lane each direction.
• Shoulder closures – On freeways or high‑speed multi‑lane roads, a shoulder closure template includes a long taper to shift vehicles away from the shoulder, appropriate signage (“Shoulder Closed Ahead”), and may omit flaggers if lanes remain open. The plan must still provide safe access for construction vehicles and protect workers.
• Full lane closures – For paving, bridge work or heavy crane lifts, one or more lanes may be closed. Templates must show the sequence of lane reductions, the use of arrow boards, crash trucks and buffer vehicles and any required detours. On urban streets, the template should also account for cyclists and pedestrians with temporary crossings or detours.

No matter which scenario applies, choose the template that matches the road type and closure configuration, and adapt it. Over‑simplifying a layout or ignoring Book 7 restrictions can lead to rejection and increased liability.

Templates often lead to rejected permits, delays, and costly rework, get a compliant traffic control plan designed for your actual site.

Request Your Ontario-Compliant TCP

Common Mistakes in DIY Traffic Control Plan Templates

Contractors often underestimate the complexity of traffic control in Ontario. The following mistakes are frequently seen in do‑it‑yourself templates, along with their impacts:

• Using outdated or out‑of‑province templates – Book 7 is specific to Ontario and was updated in 2022. Generic templates from other jurisdictions may omit required signs or use wrong sign codes. Impact: authorities reject the plan, causing permit delays and cost overruns.
• Incorrect sign spacing or sequence – Placing signs too close together or in the wrong order can confuse drivers. Impact: collisions, stop‑work orders or mandatory redesign by the road authority.
• Inadequate taper lengths or missing buffer zones – Short tapers do not give drivers enough distance to merge, and missing buffer zones expose workers to traffic. Impact: increased risk of crashes and potential prosecution under the OHSA.
• Ignoring road geometry and speed – Templates must account for curves, grades and posted speeds. Impact: devices placed on a blind curve or crest can cause rear‑end collisions and may violate Book 7 guidelines.
• Missing pedestrian or cyclist considerations – Failing to provide safe detours or barriers for pedestrians and cyclists makes the plan non‑compliant. Impact: rejection by municipalities and increased liability if a vulnerable road user is injured.
• Untrained or improperly equipped traffic control persons – Regulations require competent workers and proper PPE. Impact: fines for non‑compliance and increased risk of injury to workers and road users.
• No contingency or communication plan – Without clear procedures, crews may be unable to respond quickly to emergencies or weather changes. Impact: delays, confusion and potential harm to the public.
• Failing to obtain approval – Submitting a template without consulting the road authority or including the necessary permit information is a common mistake. Impact: the plan is rejected or requires significant rework, delaying your project.

Avoiding these pitfalls will save time, money and reputational damage. A qualified traffic engineer or professional with Book 7 expertise can review or prepare your plan to ensure it meets all requirements.

When to Use a Template vs. When You Need a Custom TCP

Not every job requires a bespoke traffic control plan. For basic, low‑risk projects such as shoulder sweeping, line painting or brief utility inspections on low‑speed roads, a standard template from Book 7 with minor adjustments may suffice. These operations involve short durations, limited lane closures and simple geometry. A competent worker can select the appropriate layout, adjust sign spacing, complete the template and proceed.

However, complex projects require more than a generic template. Situations that warrant a custom TCP include:

• Multi‑lane closures or high‑speed freeways where traffic volumes and speeds demand longer tapers, crash attenuation devices and more sophisticated sequencing.
• Night work, winter conditions or work in poor visibility, which necessitate additional lighting, reflective devices and modifications beyond the typical layout.
• Work at intersections, roundabouts or near transit stops, where pedestrian and cyclist movements must be maintained and coordination with traffic signals is critical.
• Multi‑phase or long‑duration projects requiring staging plans that change lane closures over time and affect access to businesses or residences.
• Projects near schools, hospitals or special events, which may require detours, coordination with emergency services and advance public notices.
• High‑profile projects subject to municipal engineering review, where a traffic control plan may need to be stamped by a professional engineer or include traffic analysis.

In these cases, using a template can be dangerous. OTM Book 7 notes that modifications to typical layouts should follow the fundamental principles in Sections 2–4 and should only be made by competent designers. Engaging a professional ensures that the plan accounts for all variables, reduces delays and stands up to regulatory scrutiny.

How Plan My Traffic Helps Ontario Contractors

As a Canadian B2B company, Plan My Traffic specialises in preparing Ontario‑compliant traffic control plans (TCPs) and traffic management plans (TMPs) for contractors, developers and municipalities. Our team stays current with the April 2022 edition of OTM Book 7 and the OHSA, ensuring every plan reflects the latest standards. Here’s what we provide:

• Site‑specific design – We use the Book 7 office edition and our own templates to design traffic control plans tailored to your exact location, road type, speed and project duration. We consider pedestrian and cyclist needs, transit routes, emergency access and staging sequences.
• Compliance with OTM Book 7, OHSA and municipal bylaws – Our designers are trained and competent in temporary traffic control. Plans include all required elements—advance warning, tapers, channelizing devices, control methods, PPE, communication and contingency procedures.
• Fast turnaround – We understand that delays cost money. That’s why we deliver permit‑ready, site‑specific drawings within 24 hours. If you already have a traffic control plan template Ontario, we can review it, adjust it to Book 7 standards and produce a professional drawing quickly.
• Construction traffic control plans and traffic management plans – Whether you need a simple lane‑closure diagram or a full TMP for multi‑phase projects, we have the expertise to help. Our plans have been accepted by municipalities and road authorities across Ontario.
• Expert support – We liaise with road authorities, answer reviewers’ questions and provide guidance on permits, training requirements and public notifications. This reduces the risk of rejection and ensures a smooth approval process.

Choosing Plan My Traffic means your project stays on schedule, meets all regulatory requirements and protects workers and the public. Instead of risking rejection or rework, you get a plan designed by professionals who understand OTM Book 7 and the unique challenges of Ontario roads.

 FAQs:

1. Do I need a traffic control plan template for every project in Ontario?

Yes, if your work impacts public roads or traffic flow, a traffic control plan is required. However, a basic template may only work for low-risk jobs. Most projects require a site-specific traffic control plan that aligns with OTM Book 7 and OHSA to get approval without delays.

2. Can I use a free traffic control plan template in Ontario?

You can use a template as a starting point, but relying on a generic or outdated template is risky. Many free templates are not compliant with OTM Book 7 (latest edition) or local municipal requirements. This often leads to permit rejection, delays, and extra costs.

3. How long does it take to get an approved traffic control plan in Ontario?

It depends on the complexity of the project and the quality of the plan. A properly designed, compliant plan can be approved quickly, sometimes within a few days. Poorly prepared templates often require revisions, causing delays of several days or even weeks. If you need a fast solution, a professional service can deliver a permit-ready plan within 24 hours.
