Temporary Traffic Control Plan BC: From Planning to Approval – Complete Guide

  • Reviewed by: Liam Tremblay
  • Fact checked by: Michelle Bouchard

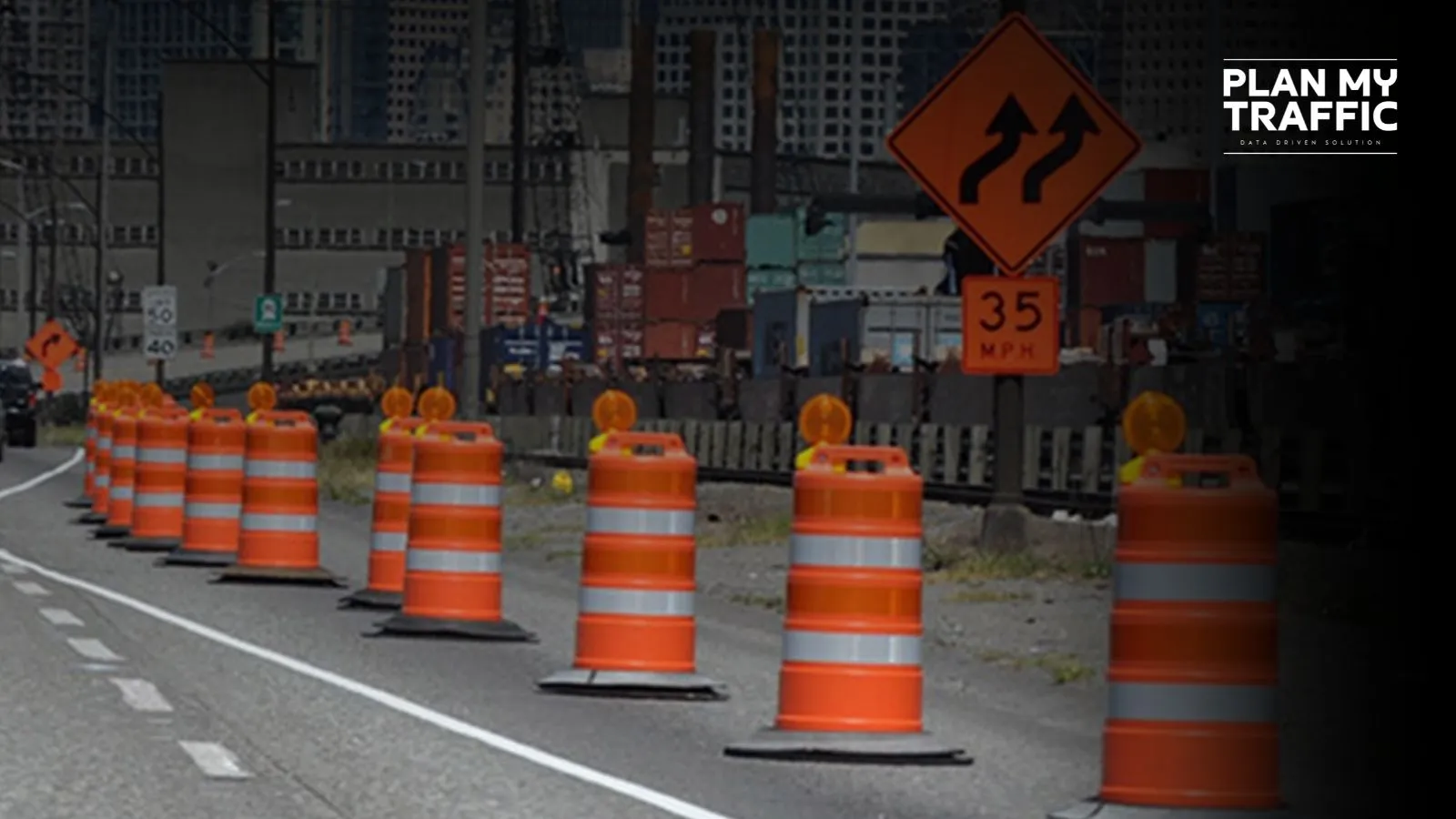

Road work zone with cones and signage showing Temporary Traffic Control Plan setup in BC

If you’re working on a construction project in British Columbia, your project doesn’t start on-site , it starts with approvals. And one of the most common reasons projects get delayed is a poorly prepared temporary traffic control plan BC.

Contractors often underestimate how detailed these plans need to be. A small mistake like incorrect taper length or missing pedestrian routing can lead to rejection, resubmission, and days of delay.

In this guide, you’ll understand how a temporary traffic control plan works in BC, what authorities expect, and how to move from planning to approval without unnecessary delays.

What Is a Temporary Traffic Control Plan in BC?

A temporary traffic control plan BC is a detailed document that shows how traffic will be safely managed around a work zone during construction, maintenance, or utility work.

It includes:

  • Lane closures and transitions
  • Sign placement and spacing
  • Traffic control devices (cones, barriers, etc.)
  • Pedestrian and cyclist routing
  • Flagger positions (if required)

In British Columbia, these plans must follow the BC Traffic Management Manual (TMM 2020) and align with requirements from authorities like BC Ministry of Transportation and Transit and WorkSafeBC.

Without a compliant plan, your permit simply won’t move forward.

Why Temporary Traffic Control Plans Matter for Approval

Most contractors only realize the importance of a temporary traffic control plan BC after their first rejection. Permit approvals in British Columbia typically take 5–10 business days, but if your plan is rejected, that timeline resets and pushes your project start further. This delay doesn’t just affect scheduling , it directly impacts costs through idle crews, equipment downtime, and rescheduling expenses, and in some cases, even penalties. At the same time, improper traffic control increases safety risks, including worker injuries, public accidents, and potential liability issues. A well-prepared plan doesn’t just meet requirements on paper , it plays a critical role in keeping your project on track, reducing risk, and avoiding unnecessary delays.

Core Components of a Temporary Traffic Control Plan BC

To get approval, your plan must be complete and precise. These are the core elements authorities look for:

1. Work Zone Layout

Your drawing must clearly show:

  • Road type and number of lanes
  • Work area boundaries
  • Traffic flow direction

2. Traffic Control Devices

You must include:

  • Sign types (BC C-series codes)
  • Cone and barrier placement
  • Spacing based on speed limits

3. Taper Length and Buffer Zones

This is one of the most common rejection points. Taper lengths must follow BC TMM tables based on:

  • Speed
  • Lane width
  • Road type

4. Pedestrian and Cyclist Management

You must clearly show:

  • Safe alternate routes
  • Accessibility compliance
  • Separation from work zone

5. Flagger Requirements

  • Flagger positions must be marked
  • Certification must meet WorkSafeBC standards

Common Mistakes That Lead to Rejection

Even experienced contractors run into rejection issues because temporary traffic control planning is not just about following a template, it involves dealing with real-world complexities. Traffic conditions can change quickly due to weather, accidents, or fluctuations in traffic volume, making it difficult to design a plan that works in every situation. At the same time, coordination between multiple stakeholders including government agencies, contractors, and emergency services, adds another layer of complexity, where miscommunication or unclear responsibilities can lead to gaps in the plan. Physical site constraints such as limited space, existing infrastructure, and the need to maintain emergency access further complicate things, requiring careful planning and site-specific adjustments rather than a one-size-fits-all approach.

This is where most plans start to fail. Contractors often rely on generic templates that don’t reflect actual site conditions, leading to inaccurate layouts. Incorrect taper lengths that don’t match speed zones are one of the most common technical errors, while missing pedestrian routing is another major reason for rejection, especially in busy areas. Poor sign placement, including wrong spacing or incorrect sign codes, can also invalidate the plan, and failing to include a clear emergency access strategy raises immediate concerns for reviewers. In most cases, rejections don’t happen because the plan is completely wrong, they happen because these critical details are either overlooked or not aligned with actual requirements.

Delays in approval can cost you time, money, and project momentum , don’t risk it.

Request Your Plan Review Now

Best Practices for Implementing Temporary Traffic Control

Implementing a Temporary Traffic Control Plan effectively requires adherence to several best practices. One of the most important practices is to ensure that all traffic control measures are clearly visible and easily understood by road users. This involves the use of high-visibility signs, barriers, and other devices, as well as clear and concise instructions. Ensuring that these measures are properly placed and maintained is critical for maximizing their effectiveness and ensuring that road users can navigate the area safely.

Another best practice is to conduct regular inspections and monitoring of the traffic control measures. This involves checking that all signs, barriers, and other devices are in good condition and properly positioned, and that they are functioning as intended. Regular monitoring allows planners to identify and address any issues that arise, such as damaged or misplaced devices, and to make adjustments to the traffic control measures as needed. This proactive approach helps to ensure that the measures remain effective throughout the duration of the work or event.

Effective communication is also a key best practice. This involves keeping all stakeholders informed about the traffic control measures and any changes that occur. This can be achieved through the use of road signs, public announcements, digital platforms, and other channels. Providing clear and timely information helps to ensure compliance with the traffic control measures and reduces the likelihood of accidents and delays. Effective communication also helps to build public trust and support for the traffic control measures, which is essential for their successful implementation.

Step-by-Step: From Planning to Approval in BC

Here’s how the process actually works:

Step 1: Identify the Authority

  • Provincial roads → MoTT
  • Municipal roads → City traffic department

Step 2: Conduct Site Assessment

Document:

  • Speed limits
  • Traffic volume
  • Lane conditions
  • Nearby intersections

Step 3: Select the Correct TMM Layout

Match your situation with the correct BC TMM 2020 figure.

Step 4: Prepare the Drawing

Include all:

  • Devices
  • Distances
  • Work zone sections

Step 5: Submit for Approval

Use the correct form:

  • MoTT → Lane closure / work notification
  • Municipality → Local permit system

Not sure if your traffic control plan will meet BC requirements or pass approval on the first try?

Avoid Delays – Get Started Now

Case Studies: Successful Temporary Traffic Control Plans in BC

Examining case studies of successful Temporary Traffic Control Plans in BC provides valuable insights into best practices and strategies for effective implementation. One notable example is the traffic control plan implemented during the construction of the Port Mann Bridge. This project involved significant disruptions to traffic, including lane closures and detours. The traffic control plan included the use of high-visibility signs and barriers, regular monitoring and adjustments, and effective communication with the public. The result was a successful project with minimal disruptions and a high level of safety for both workers and the public.

Another successful case study is the traffic control plan implemented for the Vancouver 2010 Winter Olympics. This event required extensive traffic control measures to accommodate the influx of visitors and the numerous events taking place across the city. The traffic control plan included the use of advanced traffic management software, real-time monitoring, and a comprehensive communication strategy. The plan was highly effective in managing the increased traffic volume and ensuring the safety and convenience of all road users.

A third example is the traffic control plan implemented during the rehabilitation of the Lions Gate Bridge. This project required significant coordination and collaboration between various stakeholders, including government agencies, contractors, and the public. The traffic control plan included regular inspections and monitoring, clear and concise communication, and the use of high-visibility signs and barriers. The project was completed on time and with minimal disruptions, demonstrating the effectiveness of the traffic control measures.

Conclusion

A temporary traffic control plan BC is more than a requirement for permit approval ,it is the foundation that determines whether your project moves forward smoothly or gets delayed before it even begins. As covered in this guide, understanding what a plan includes, why it matters for approval, and how authorities review it gives you a clear advantage from the start. When you combine that with a strong grasp of the core components such as work zone layout, traffic control devices, taper lengths, and pedestrian management you reduce the chances of errors that commonly lead to rejection.

We also looked at the real reasons plans fail, from generic templates to missing critical details, and how real-world challenges like changing traffic conditions, stakeholder coordination, and site constraints impact planning. At the same time, best practices and step-by-step guidance from planning to approval show what actually works in British Columbia. The case studies further highlight that successful projects are not accidental they are the result of careful planning, clear communication, and continuous monitoring. In the end, the difference between delay and smooth approval comes down to how well your temporary traffic control plan BC reflects actual site conditions and meets the expectations of reviewing authorities.

If your plan gets rejected, your timeline resets, avoid that risk by submitting your details below and getting it checked first.

Request a Quote

Ready to Work Together? Build a project with us!

Frequently Asked Questions(FAQs)

1. When is a temporary traffic control plan required in British Columbia?

A temporary traffic control plan BC is required whenever any work activity impacts the normal flow of traffic on public roads. This includes lane closures, shoulder work, road construction, utility installations, maintenance work, or any situation where pedestrian or cyclist movement is affected. Both provincial and municipal authorities require a properly prepared plan before issuing permits, as it ensures that traffic can move safely through or around the work zone without putting workers or the public at risk.

2. What are the most common reasons for rejection in BC?

The most common reasons a temporary traffic control plan BC gets rejected are usually related to missing or inaccurate details rather than major errors. These include incorrect taper lengths that don’t match speed limits, lack of proper pedestrian routing, poor sign placement or spacing, and failure to provide an emergency access plan. Another frequent issue is the use of generic templates that do not reflect actual site conditions such as road geometry or nearby intersections. Even small inconsistencies can lead to rejection and require resubmission.

3. How long does it take to get a traffic control plan approved in BC?

In British Columbia, the approval process for a temporary traffic control plan BC typically takes around 5–10 business days if the submission is complete and meets all requirements. However, this timeline can vary depending on the complexity of the project and the reviewing authority. If the plan is rejected due to errors or missing details, the process must start again after revisions are made, which can add several more days and delay the overall project schedule.
